OE Wheels·CV08A Replica

17x9.5 CV08A Gloss Black Redline · 5×120.65 · +54ET

SKU CV08A-17095-5475-54BRUPC 9498436
This product is vehicle specific. Select a Vehicle to ensure fitment.
Size
17 × 9.5
Bolt pattern
5-120.65
Offset
54 mm
Hub bore
70.3 mm
Backspacing
7.38 in
Load rating
1520 lb
Finish detail: Gloss Black Redline
Full specifications ↓View fitment ↓
Florida Out of stock
Texas Out of stock
Shipping not included
Certified & guaranteed straight and true
TUVJWLVIASAEDOT
Lifetime structural warranty · 1-year finish warranty
WS
Your Wheel Specialist
OE Wheels Wheel Specialists
866-273-3651 Contact
AccessoriesFitmentSpecifications Overview Shipping & warranty
Catalog Mode · pricing hidden

Accessories for this wheel

Tire pressure sensors that work with this wheel
All accessories
TPMS v2.0 Programmable Tire Pressure Sensor Black Rubber Stem
OE Wheels UPC: 4333150 SKU: ACCY-TPMS-BLACK-SNAP-IN

TPMS v2.0 Programmable Tire Pressure Sensor Black Rubber Stem

Florida 419
Texas 449
TPMS Programmable Tire Pressure Sensor Chrome Metal Stem
OE Wheels UPC: 4333154 SKU: ACCY-TPMS-CHROME-METAL

TPMS Programmable Tire Pressure Sensor Chrome Metal Stem

Florida 233
Texas 421
TPMS Programmable Tire Pressure Sensor Silver Metal Stem
OE Wheels UPC: 4333153 SKU: ACCY-TPMS-SILVER-METAL

TPMS Programmable Tire Pressure Sensor Silver Metal Stem

Florida 155
Texas 393
TPMS Programmable Tire Pressure Sensor Black Metal Stem
OE Wheels UPC: 4333152 SKU: ACCY-TPMS-BLACK-METAL

TPMS Programmable Tire Pressure Sensor Black Metal Stem

Florida 268
Texas 295

Fitment

Vehicle Specific · 4 applications
Years
Make
Model
Your vehicle
1993 – 2002
Chevrolet
Camaro
1988 – 1996
Chevrolet
Corvette
1997 – 2004
Chevrolet
Corvette
1993 – 2002
Pontiac
Firebird
Original center cap and TPMS sensors interchange. Verify tire size for fender clearance.

Specifications

Dimensions
Wheel diameter
17 in
Wheel width
9.5 in
Offset
54 mm
Backspacing
7.38 in
Fitment
Bolt pattern
5-120.65
Bolt holes
5
Hub bore
70.3 mm
Load rating
1520 lbs / 690 kg
Identity
Brand
OE Wheels
SKU
CV08A-17095-5475-54BR
UPC
9498436
GTIN
818104021094
Package
Center caps
Center cap included, Original center cap will interchange
Weight
28.0 lb

Overview

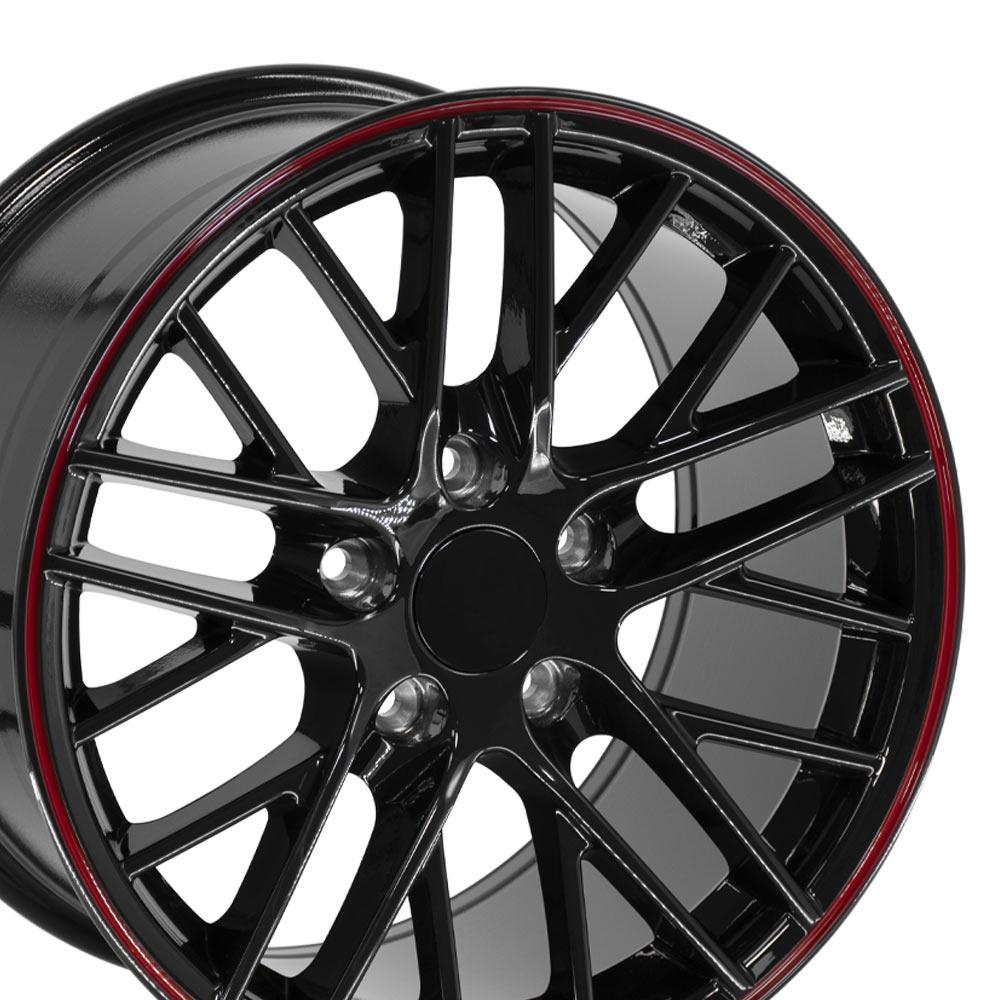

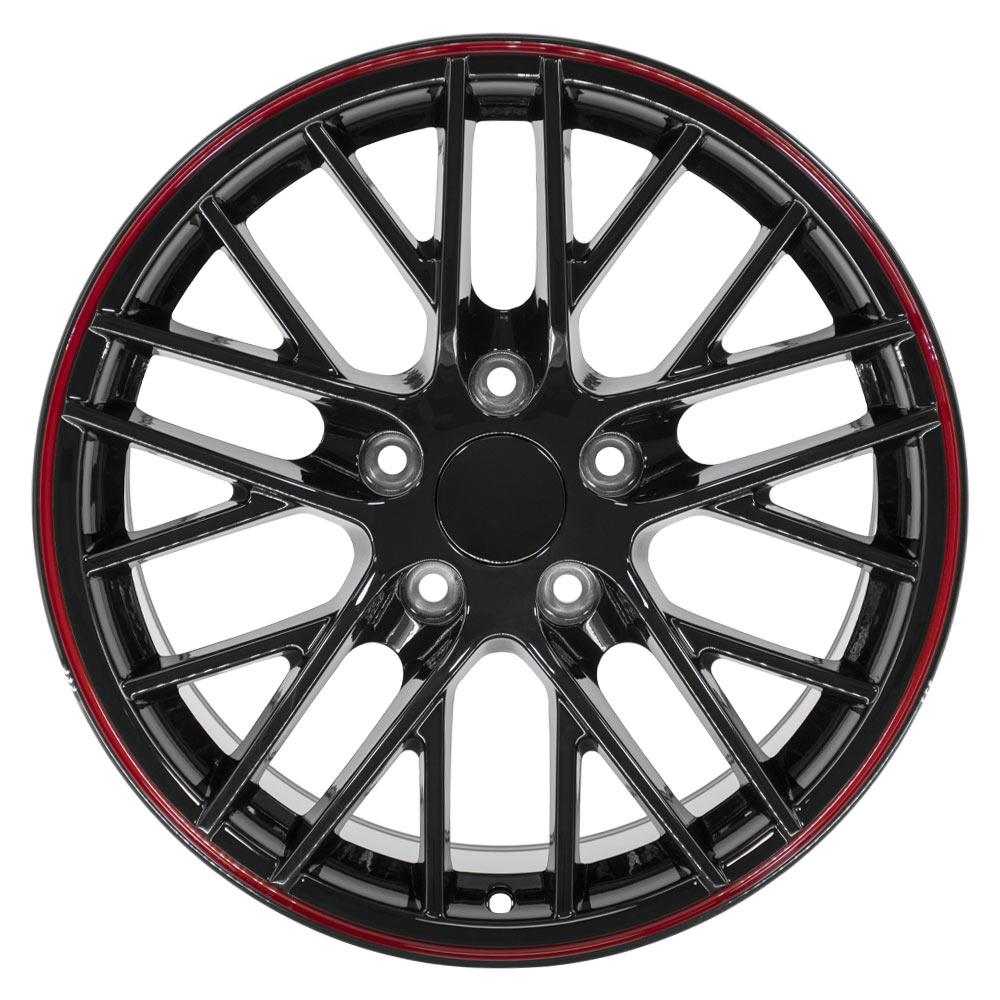

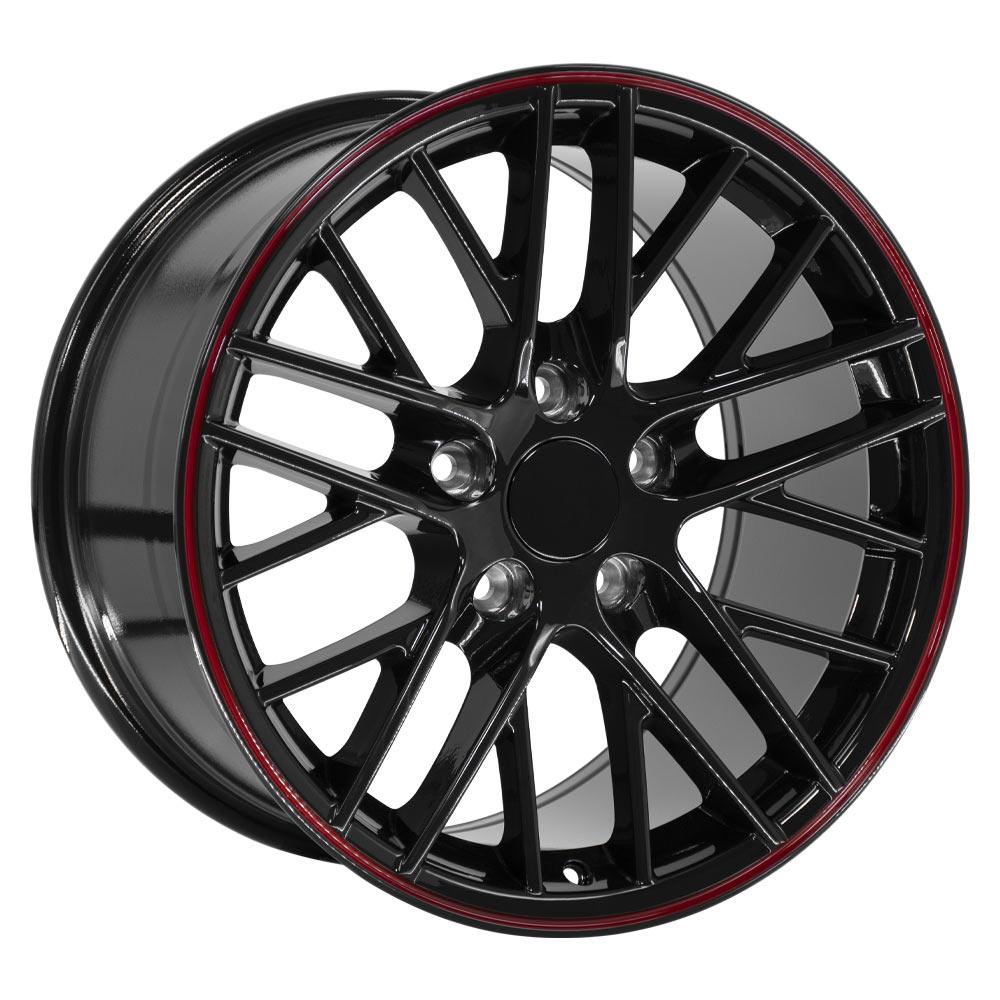

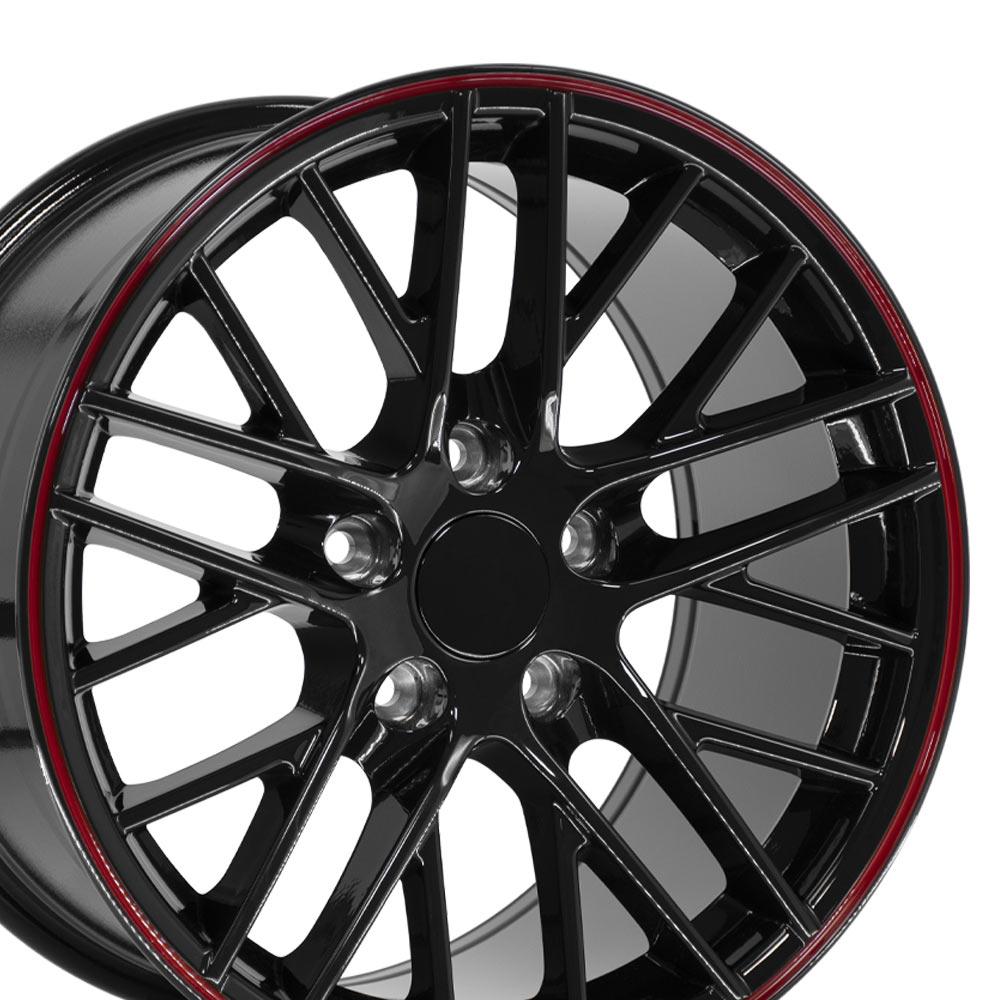

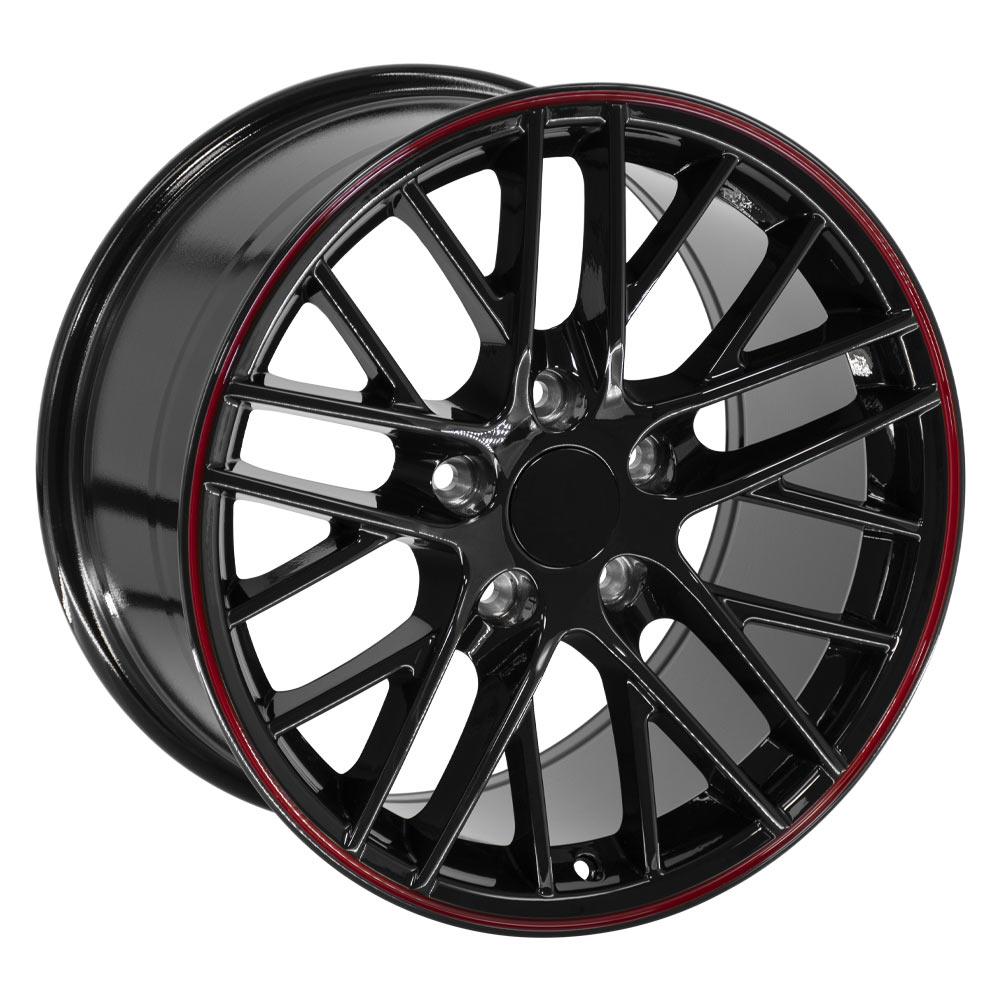

Fits Chevy Corvette Wheel CV08A Replica Wheel C6 ZR1 Rim

17-inch Rim for Chevrolet Corvette C6 ZR1 CV08A 17x9.5 Black Chevy Wheel Redline.

These CV08 Corvette replica wheels are 17x9.5 black Chevy rims with red stripes (C6 ZR1 Rim Style) designed to fit the Chevy Corvette and other compatible vehicles. Please check our fitment tab for specific year-make-model applications and will-not-fit exceptions before ordering.

Over the past 21 years, OE Wheel Distributors has forged relationships with some of the world’s highest quality, ISO9001 certified wheel manufacturers. Many of these same facilities also produce wheels for some of the largest names in the US domestic OEM brand lineup. All of our products are designed, engineered, manufactured and tested to adhere strictly to all SAE-J2530 requirements and are backed by lifetime structural warranty.. Like all quality Corvette replica wheels, the CV08 should be washed with soap and water only (no harsh chemicals), and dried with a clean microfiber cloth.

Shipping & warranty

Shipping
  • Ships from Florida or Texas — whichever warehouse has stock.
  • Package 20 × 20 × 12 in · 28 lb per wheel, shipped individually boxed.
  • Shipping is not included in wholesale pricing. Freight is calculated at checkout from the warehouse that ships your order.

Shipping policy

Warranty
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Standard Wheel Warranty: ","bold":true},{"type":"text","value":"We guarantee this rim against all manufacturer's defects for one full year. We also provide a lifetime structural warranty and a one year warranty on the finish, providing the wheel has been properly maintained. All OE Wheels are TUV, JWL, VIA, SAE or DOT approved and guaranteed to be straight and true. Please refer to our "},{"type":"link","url":"/policies/terms-of-service","title":null,"target":null,"children":[{"type":"text","value":"Terms & Conditions"}]},{"type":"text","value":" for complete warranty details."}]}]}
