See it on a vehicle

OE Wheels·CV04 Replica

18x10.5 CV04 Chrome · 5×120.65 · +56ET

SKU CV04-18105-5475-56CUPC 4750687
This product is vehicle specific. Select a Vehicle to ensure fitment.
Size
18 × 10.5
Bolt pattern
5-120.65
Offset
56 mm
Hub bore
70.3 mm
Backspacing
7.95 in
Load rating
1400 lb
Finish detail: Chrome
Full specifications ↓View fitment ↓
Florida 137 in stock
Texas Out of stock
Shipping not included
Certified & guaranteed straight and true
TUVJWLVIASAEDOT
Lifetime structural warranty · 1-year finish warranty
WS
Your Wheel Specialist
OE Wheels Wheel Specialists
866-273-3651 Contact
AccessoriesFitmentSpecifications Overview Shipping & warranty
Catalog Mode · pricing hidden

Accessories for this wheel

Tire pressure sensors that work with this wheel
All accessories
TPMS v2.0 Programmable Tire Pressure Sensor Black Rubber Stem
OE Wheels UPC: 4333150 SKU: ACCY-TPMS-BLACK-SNAP-IN

TPMS v2.0 Programmable Tire Pressure Sensor Black Rubber Stem

Florida 419
Texas 449
TPMS Programmable Tire Pressure Sensor Chrome Metal Stem
OE Wheels UPC: 4333154 SKU: ACCY-TPMS-CHROME-METAL

TPMS Programmable Tire Pressure Sensor Chrome Metal Stem

Florida 229
Texas 421
TPMS Programmable Tire Pressure Sensor Silver Metal Stem
OE Wheels UPC: 4333153 SKU: ACCY-TPMS-SILVER-METAL

TPMS Programmable Tire Pressure Sensor Silver Metal Stem

Florida 151
Texas 393
TPMS Programmable Tire Pressure Sensor Black Metal Stem
OE Wheels UPC: 4333152 SKU: ACCY-TPMS-BLACK-METAL

TPMS Programmable Tire Pressure Sensor Black Metal Stem

Florida 268
Texas 295

Fitment

Vehicle Specific · 4 applications
Years
Make
Model
Your vehicle
1993 – 2002
Chevrolet
Camaro
1988 – 1996
Chevrolet
Corvette
1997 – 2004
Chevrolet
Corvette
1993 – 2002
Pontiac
Firebird
Original center cap and TPMS sensors interchange. Verify tire size for fender clearance.

Specifications

Dimensions
Wheel diameter
18 in
Wheel width
10.5 in
Offset
56 mm
Backspacing
7.95 in
Fitment
Bolt pattern
5-120.65
Bolt holes
5
Hub bore
70.3 mm
Load rating
1400 lbs / 635 kg
Identity
Brand
OE Wheels
SKU
CV04-18105-5475-56C
UPC
4750687
GTIN
818104020721
Package
Center caps
Center cap included, Original center cap will interchange
Weight
28.0 lb

Overview

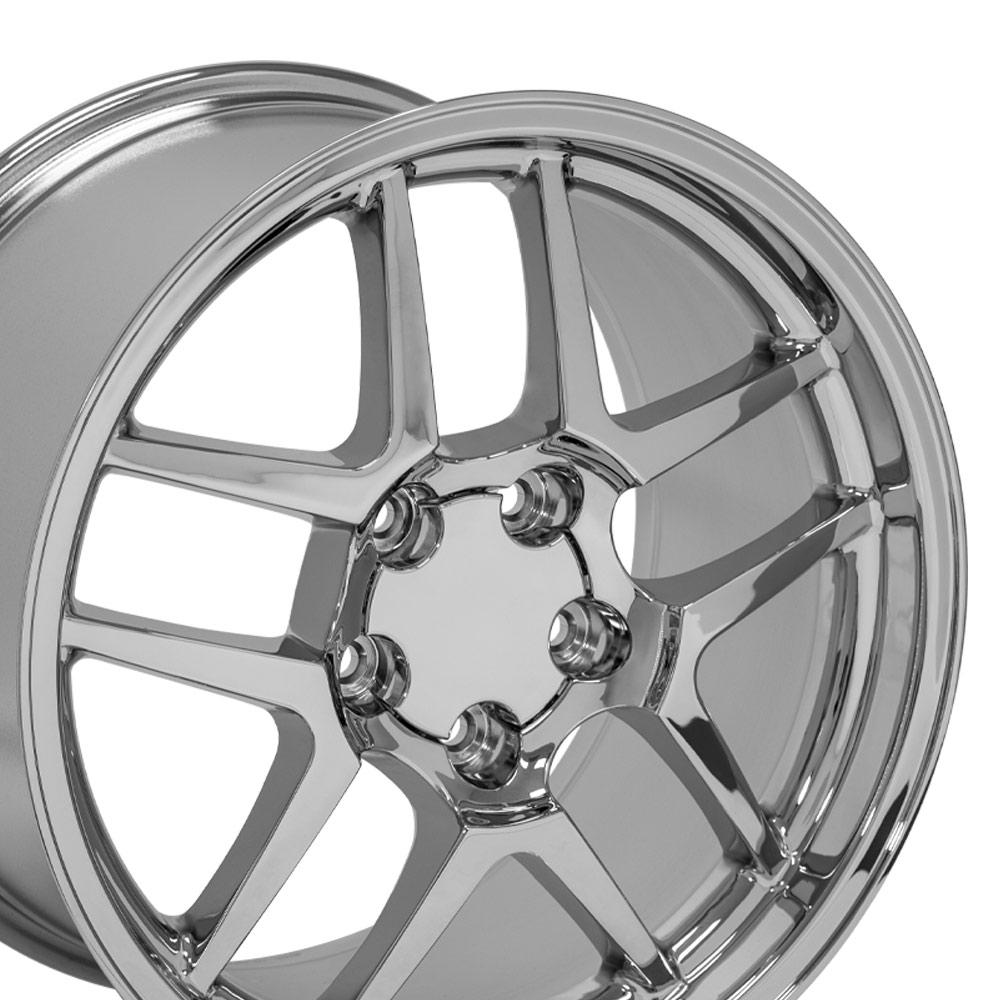

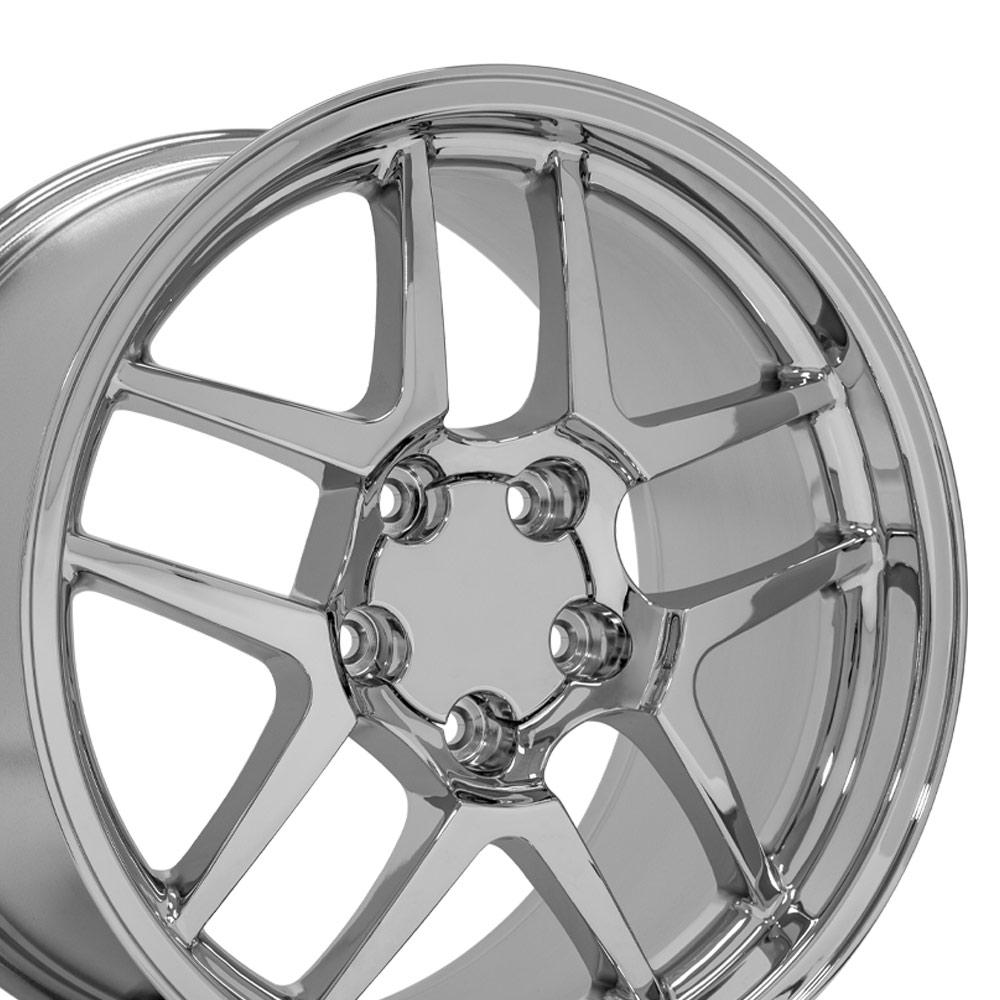

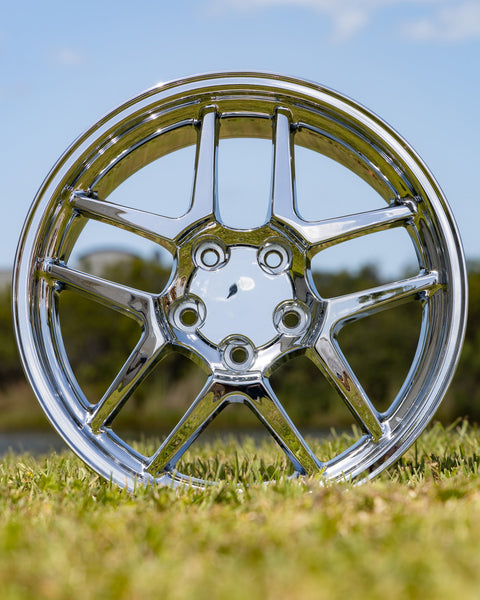

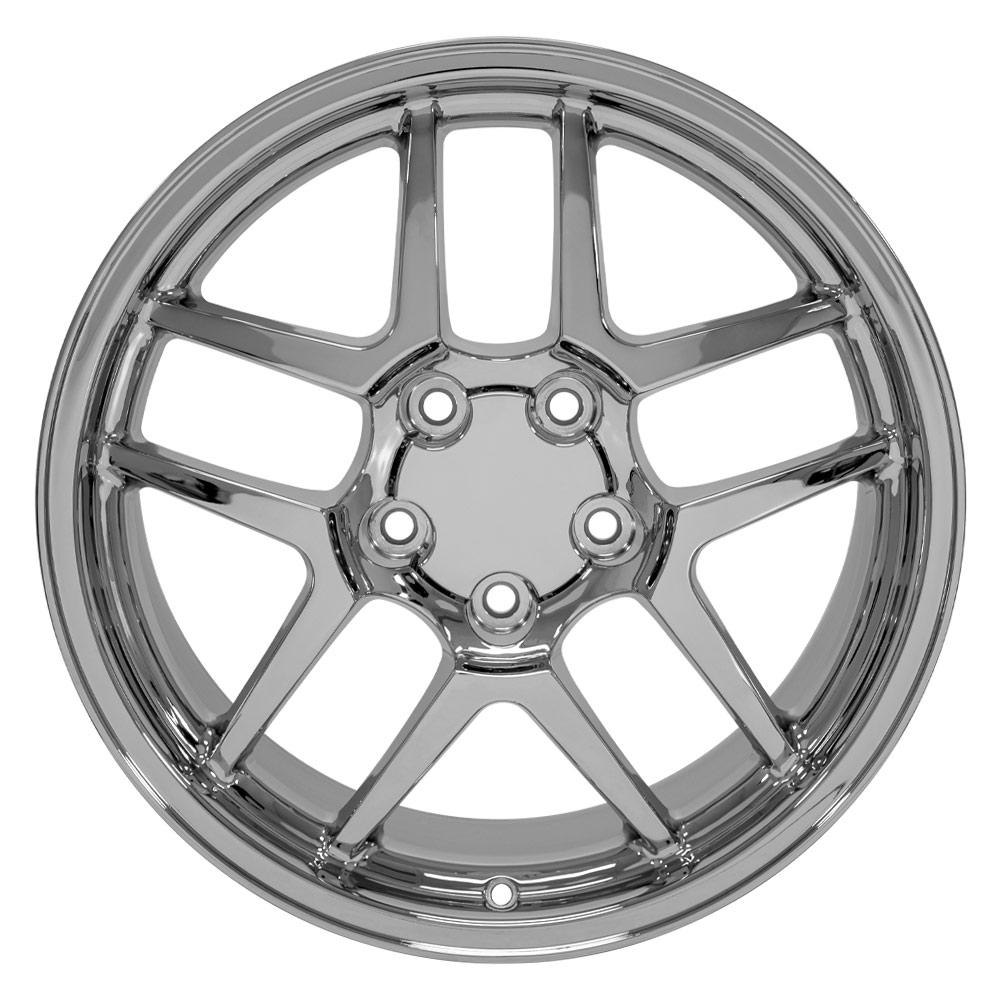

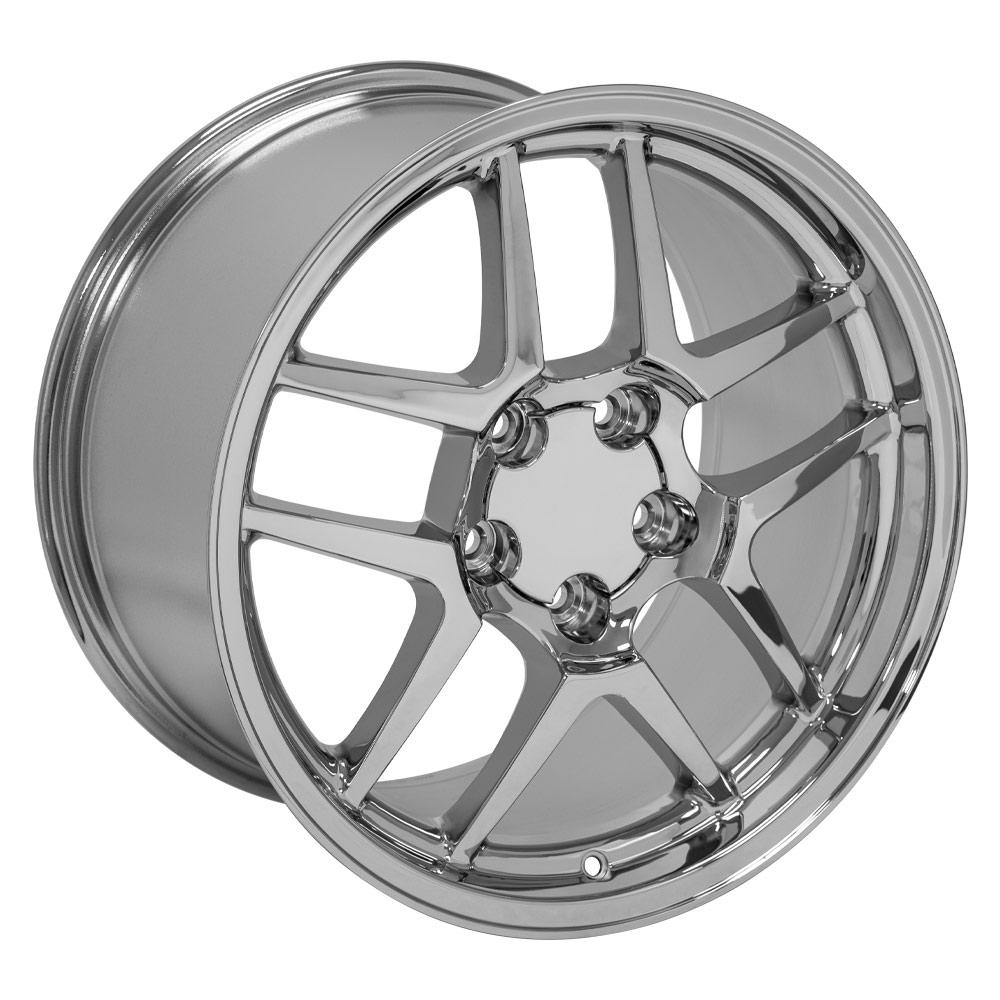

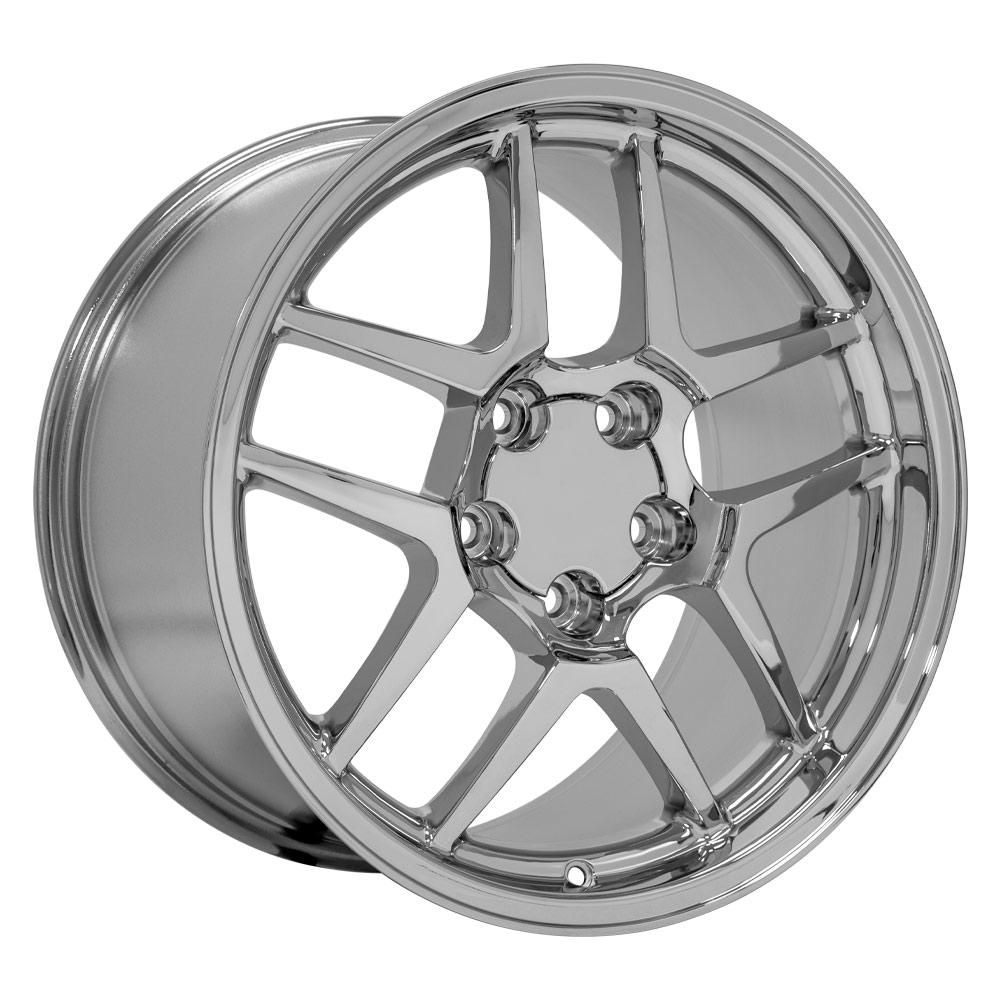

Fits Chevy Corvette Wheel CV04 Replica Wheel C5 Z06 Rim

These CV04 Corvette replica wheels are 18x10.5 Chrome Chevy rims (C5 Z06 Rim Style) designed to fit the Chevy Corvette and other compatible vehicles. Please check our fitment tab for specific year-make-model applications and will-not-fit exceptions before ordering.

Over the past 21 years, OE Wheel Distributors has forged relationships with some of the world’s highest quality, ISO9001 certified wheel manufacturers. Many of these same facilities also produce wheels for some of the largest names in the US domestic OEM brand lineup. All of our products are designed, engineered, manufactured and tested to adhere strictly to all SAE-J2530 requirements and are backed by lifetime structural warranty.. Like all quality Corvette replica wheels, the CV04 should be washed with soap and water only (no harsh chemicals), and dried with a clean microfiber cloth.

Shipping & warranty

Shipping
  • Ships from Florida or Texas — whichever warehouse has stock.
  • Package 21 × 21 × 13 in · 28 lb per wheel, shipped individually boxed.
  • Shipping is not included in wholesale pricing. Freight is calculated at checkout from the warehouse that ships your order.

Shipping policy

Warranty
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Standard Wheel Warranty: ","bold":true},{"type":"text","value":"We guarantee this rim against all manufacturer's defects for one full year. We also provide a lifetime structural warranty and a one year warranty on the finish, providing the wheel has been properly maintained. All OE Wheels are TUV, JWL, VIA, SAE or DOT approved and guaranteed to be straight and true. Please refer to our "},{"type":"link","url":"/policies/terms-of-service","title":null,"target":null,"children":[{"type":"text","value":"Terms & Conditions"}]},{"type":"text","value":" for complete warranty details."}]}]}
