See it on a vehicle

DEFIANT Wheels·DF01 Defiant

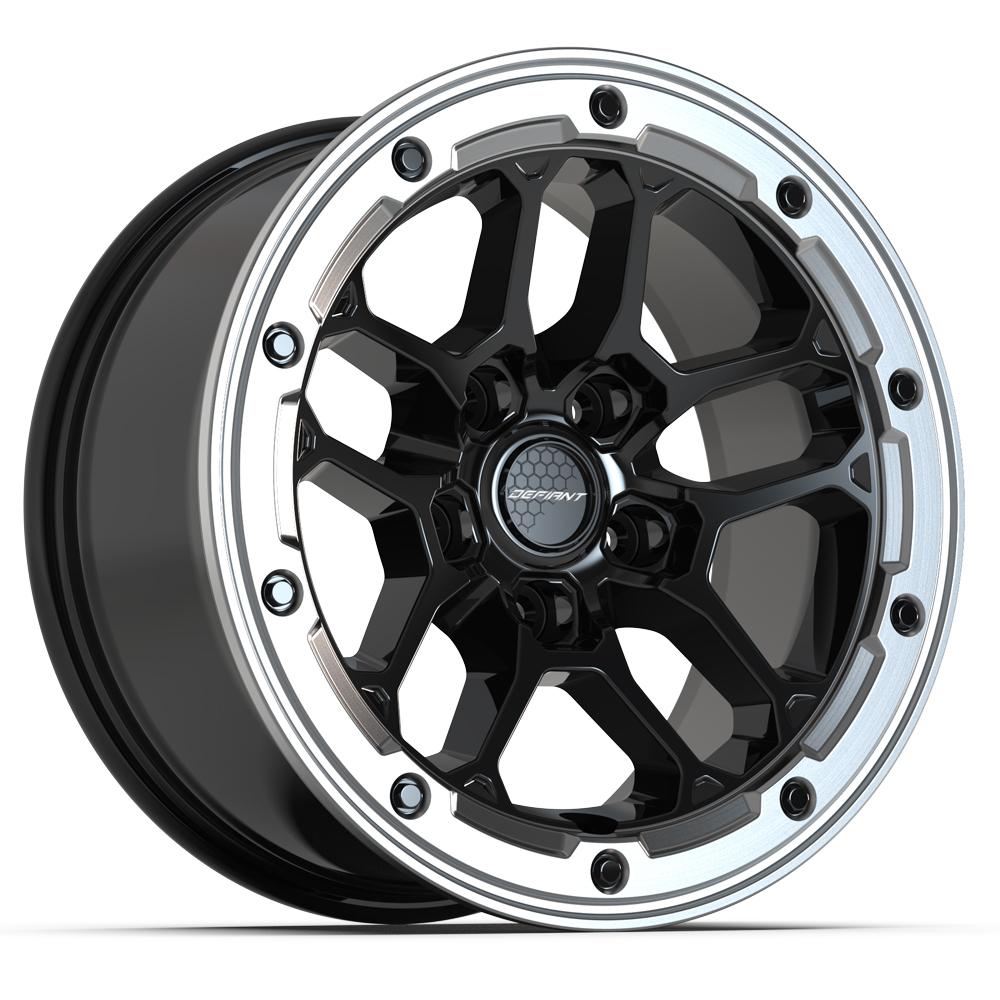

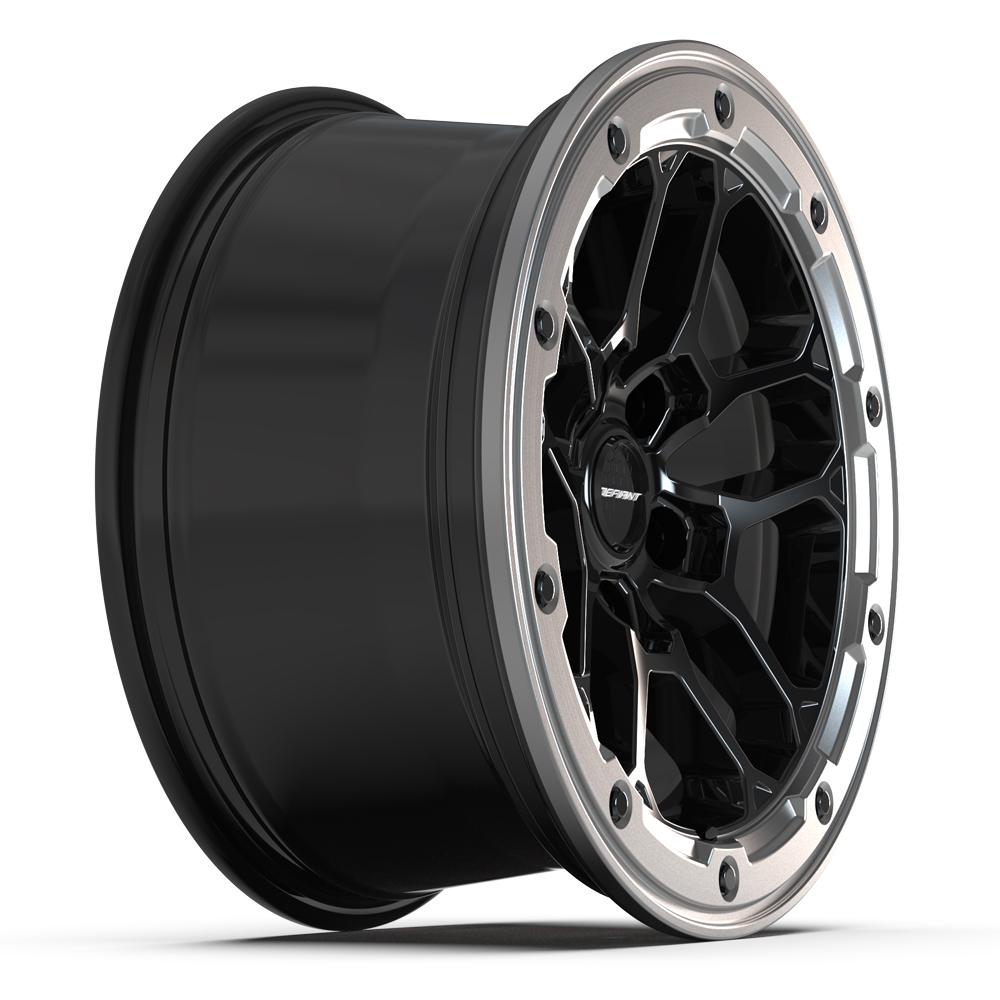

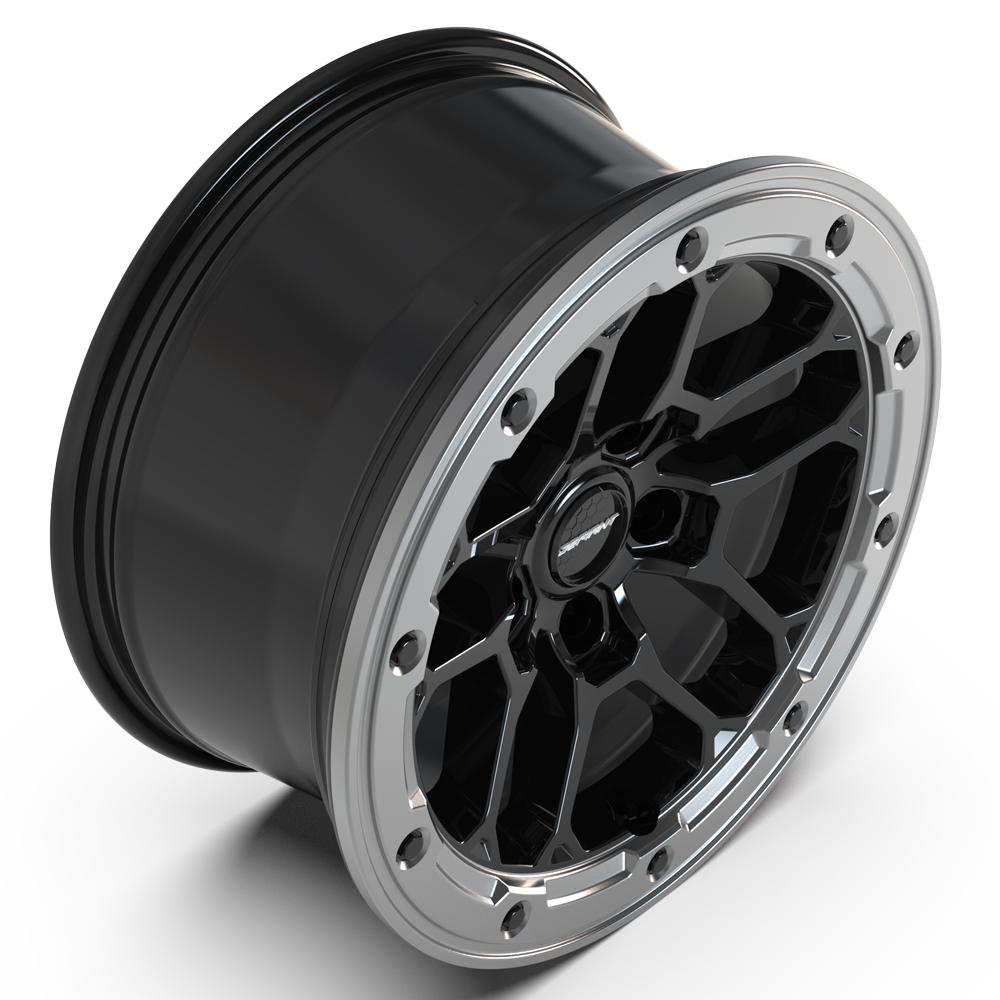

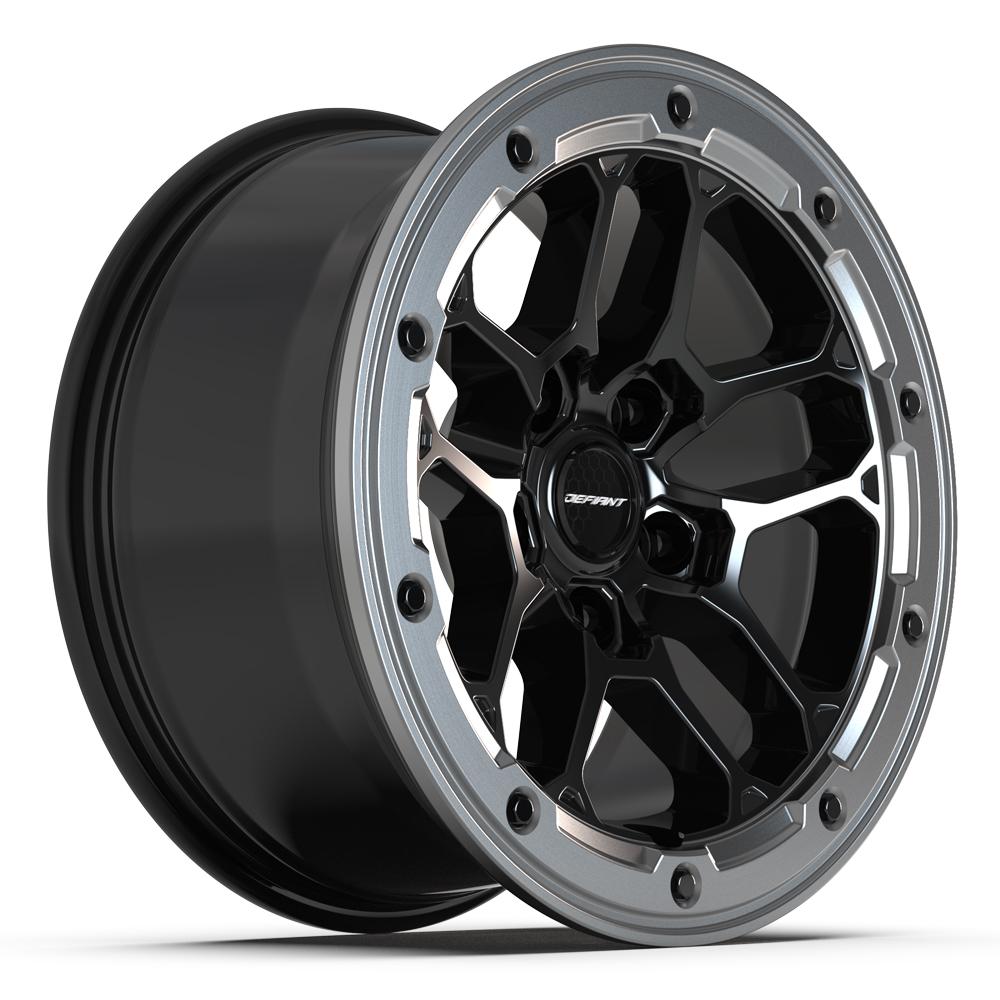

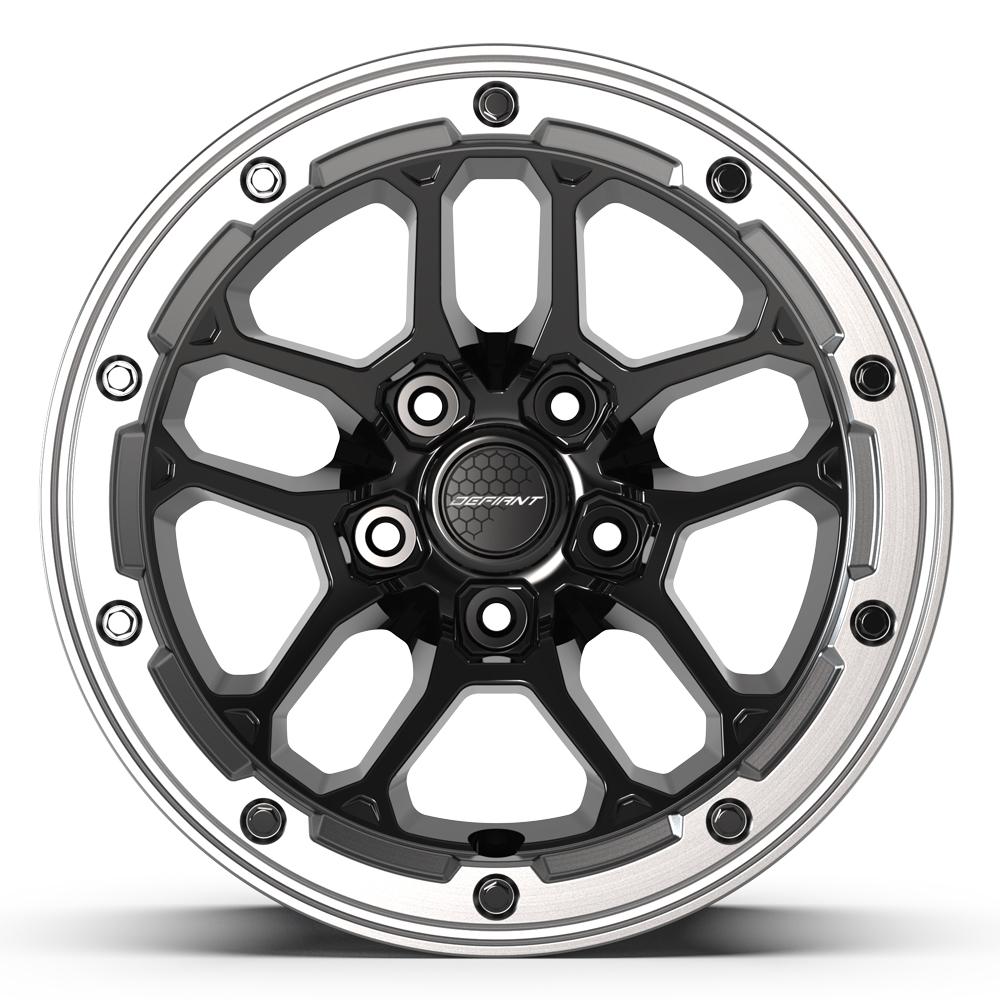

17x8 DF01 Gloss Black with Milled Edge · 5×127 · +12ET

SKU DF01-17080-5127-12MBUPC 9511042
This product is vehicle specific. Select a Vehicle to ensure fitment.
Size
17 × 8
Bolt pattern
5-127
Offset
12 mm
Hub bore
71.5 mm
Backspacing
4.97 in
Load rating
2450 lb
Finish detail: Gloss Black with Milled Edge
Full specifications ↓View fitment ↓
Florida 48 in stock
Texas Out of stock
Shipping not included
Certified & guaranteed straight and true
TUVJWLVIASAEDOT
Lifetime structural warranty · 1-year finish warranty
WS
Your Wheel Specialist
OE Wheels Wheel Specialists
866-273-3651 Contact
AccessoriesFitmentSpecifications Overview Shipping & warranty
Catalog Mode · pricing hidden

Accessories for this wheel

Tire pressure sensors that work with this wheel
All accessories
TPMS v2.0 Programmable Tire Pressure Sensor Black Rubber Stem
OE Wheels UPC: 4333150 SKU: ACCY-TPMS-BLACK-SNAP-IN

TPMS v2.0 Programmable Tire Pressure Sensor Black Rubber Stem

Florida 419
Texas 449
TPMS Programmable Tire Pressure Sensor Chrome Metal Stem
OE Wheels UPC: 4333154 SKU: ACCY-TPMS-CHROME-METAL

TPMS Programmable Tire Pressure Sensor Chrome Metal Stem

Florida 229
Texas 421
TPMS Programmable Tire Pressure Sensor Silver Metal Stem
OE Wheels UPC: 4333153 SKU: ACCY-TPMS-SILVER-METAL

TPMS Programmable Tire Pressure Sensor Silver Metal Stem

Florida 151
Texas 393
TPMS Programmable Tire Pressure Sensor Black Metal Stem
OE Wheels UPC: 4333152 SKU: ACCY-TPMS-BLACK-METAL

TPMS Programmable Tire Pressure Sensor Black Metal Stem

Florida 268
Texas 295

Fitment

Vehicle Specific · 2 applications
Years
Make
Model
Your vehicle
2007 – 2026
Jeep
Wrangler
2019 – 2026
Jeep
Gladiator
Original center cap and TPMS sensors interchange. Verify tire size for fender clearance.

Specifications

Dimensions
Wheel diameter
17 in
Wheel width
8 in
Offset
12 mm
Backspacing
4.97 in
Fitment
Bolt pattern
5-127
Bolt holes
5
Hub bore
71.5 mm
Load rating
2450 lbs / 1112 kg
Identity
Brand
DEFIANT Wheels
SKU
DF01-17080-5127-12MB
UPC
9511042
GTIN
810018978570
DT Article Number
184083
Package
Center caps
Center cap included, Original center cap will interchange
Center cap diameter
2.5"
Weight
41.0 lb

Overview

These DF01 defiant wheels are 17x8 gloss black with milled ring rims designed to fit the Jeep Wrangler and other compatible vehicles. Please check our fitment tab for specific year-make-model applications and will-not-fit exceptions before ordering.

All OE Wheels rims are TUV, JWL, VIA, SAE or DOT approved, and are guaranteed to be straight and true (refer to our warranty tab for more information). Like all quality defiant wheels, the DF01 should be washed with soap and water only (no harsh chemicals), and dried with a clean microfiber cloth.

Shipping & warranty

Shipping
  • Ships from Florida or Texas — whichever warehouse has stock.
  • Package 20 × 20 × 11 in · 41 lb per wheel, shipped individually boxed.
  • Shipping is not included in wholesale pricing. Freight is calculated at checkout from the warehouse that ships your order.

Shipping policy

Warranty
{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Standard Wheel Warranty: ","bold":true},{"type":"text","value":"We guarantee this rim against all manufacturer's defects for one full year. We also provide a lifetime structural warranty and a one year warranty on the finish, providing the wheel has been properly maintained. All OE Wheels are TUV, JWL, VIA, SAE or DOT approved and guaranteed to be straight and true. Please refer to our "},{"type":"link","url":"/policies/terms-of-service","title":null,"target":null,"children":[{"type":"text","value":"Terms & Conditions"}]},{"type":"text","value":" for complete warranty details."}]}]}
